Questions about integrated d/w toekick

kitchen_angstOctober 9, 2010

The last pieces of my kitchen are being put in place, and I was suprised to come home and find this toekick for the integrated Miele d/w.

I was told the screws were installed to allow removal for servicing of the d/w, but velcro is another option. As far as the protrusion though, it appears that the "feet" for the toekick extend beyond the surrounding toekick.

I had expected the d/w toekick to be in the same plane as the surrounding cabinet toekick. Is this normal? Do I have other options?

Thanks in advance!

~kitch

Thank you for reporting this comment. Undo
Fori is not pleased

Are you sure those toekick feety holders can't be tightened up to pull it in some?

    Bookmark   October 9, 2010 at 1:02PM
Thank you for reporting this comment. Undo
kitchen_angst

Fori, I just checked. They can be moved back in a bit, but still protrude slightly beyond the plane of the toekick. It is better though.

    Bookmark   October 9, 2010 at 2:24PM
Thank you for reporting this comment. Undo
ci_lantro

Another possible solution would be to use some spacer material behind the finished toekick everywhere except on the section underneath the DW. IOW's remove the thin toekick & apply strips of 1/2 or 3/4 inch plywood to the toekick section & then re-install the finished toekick.

    Bookmark   October 9, 2010 at 3:16PM
Thank you for reporting this comment. Undo
cali_wendy

I just checked mine. Looks like the cabinet guy removed that protrusion piece altogether. Can yours be removed?

Then, on the sides of each flanking cabinet 2 magnets are screwed in so the magnet is facing forward. The toe kick piece has magnets on the back of it that attach it so it sits flush with the rest of the toe kick.

    Bookmark   October 9, 2010 at 8:39PM
Thank you for reporting this comment. Undo
kitchen_angst

Cali_wendy, yes, the footie thing can be easily removed. The magnet option sounds brillant. Thanks!

    Bookmark   October 9, 2010 at 8:43PM
Thank you for reporting this comment. Undo
cali_wendy

Sweet! I hope it works for you.

I'm happy to discover my cabinet guy did *something* right. ;)

    Bookmark   October 9, 2010 at 8:53PM
Thank you for reporting this comment. Undo
calypsochick

Our cabinet installer didn't use the toekick that came with our Miele. Instead he just installed the regular toekick we used everywhere else under our cabinetry. It seemed like it was easy enough to do.

    Bookmark   October 9, 2010 at 10:31PM
Thank you for reporting this comment. Undo
doonie

The toe kick was left off of ours. When I inquired, the GC said it was so the DW could be easily accessed for repair.

cali wendy, that is a great idea with the magnet attatchment! I am passing it on to my GC. It looks distracting not to have a toe kick on an integrated DW. You all have confirmed that for me.

    Bookmark   October 10, 2010 at 8:38AM
Thank you for reporting this comment. Undo
sombreuil_mongrel

On my FI Bosch, I had to add 1/2" spacers and velcro strips. It took a while to figure this out in my own kitchen, but it saved me some time on another job where I had to do a similar install.

Casey

    Bookmark   October 10, 2010 at 2:11PM
Thank you for reporting this comment. Undo
brickeyee

"Our cabinet installer didn't use the toekick that came with our Miele. Instead he just installed the regular toekick we used everywhere else under our cabinetry. It seemed like it was easy enough to do."

Unless they made the DW piece separate and attached to the DW the first repair you need is going to be a real PITA.

This ranks below putting tile in that traps the DW under the counter, but runs a close second.

    Bookmark   October 10, 2010 at 3:06PM
Thank you for reporting this comment. Undo
amarantha

as posted by sombreuil_mongrel (My Page) on
Sun, Oct 10, 10 at 14:11

On my FI Bosch, I had to add 1/2" spacers and velcro strips. It took a while to figure this out in my own kitchen, but it saved me some time on another job where I had to do a similar install.
____________________________________________

Hi Casey, could you post a photo with your DW closed. I am curious as to the fit at the bottom trim. Is your DW panel inset? It looks like you've done what my cabinet maker said couldn't be done - but a photo would help clarify.
Thanks!

    Bookmark   October 10, 2010 at 4:09PM
Thank you for reporting this comment. Undo
woodworkguy

Option One..spacers in back of other toekick trim pcs so it flushes with DW toekick pc. Are you only adding a 1/4" panel to the DW front..seems like it it could warp..or is it a miele metal trim pc?
Option two..DW brackets move farther back enough to have a flush toekick pc.
Option three...remove the DW brackets so you have more clearance. Looks like you have some space at both sides of the DW at the toekick to still get the DW out. If so you can add narrow nailer blocks to each side and pin nail a trim pc in fron to the DW which should be easy to remove later. You may even be able to cut back each existing toe kick trim pc on each side of the DW so the DW trim pc overlaps and flushes with the side pcs. then just screw in place to the plywood platform you have pictured. Make sense?

    Bookmark   October 10, 2010 at 6:52PM
Thank you for reporting this comment. Undo
kitchen_angst

Woodworkguy, not sure I understand.

Option one. The panel on the front of the d/w is 3/4". Not sure what a metal tri pc is?
Option three. I think I understand, all but the last part.

    Bookmark   October 10, 2010 at 7:49PM
Thank you for reporting this comment. Undo
sombreuil_mongrel

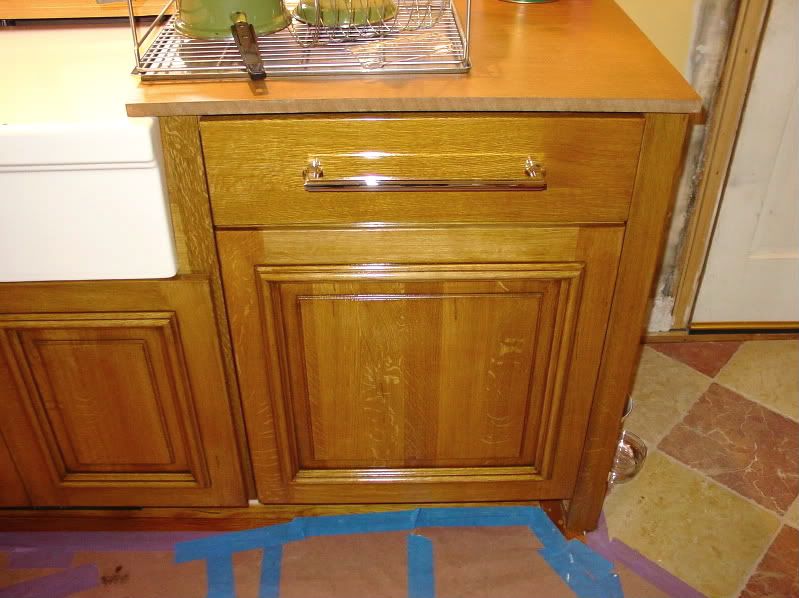

Mine's overlay, not inset, but inset is doable.

If you go to the link, you can see the other DW I installed, it is inset, by Crown Point.
Casey

Here is a link that might be useful: Inset Bosch DW panel

    Bookmark   October 10, 2010 at 7:58PM
Thank you for reporting this comment. Undo
cali_wendy

Here are a few pics of how ours was installed (as described above). Please ignore the massive amounts of dirt under my dishwasher. I guess I should have cleaned it while I was down there taking pictures, but I didn't. I decided to have a glass of wine instead. :)

Just a note about the thickness and warping issue mentioned by woodworkguy. The toe kick is just a thin "skin" and has been installed for over a year and we haven't had any warping issues. Many other issues, but no warping toe kick.

How the integrated toe kick normally looks:

Close up of flush toe kick:

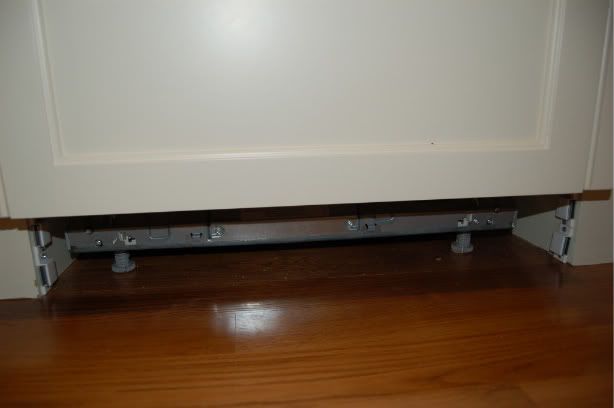

Magnets installed on flanking cabinets:

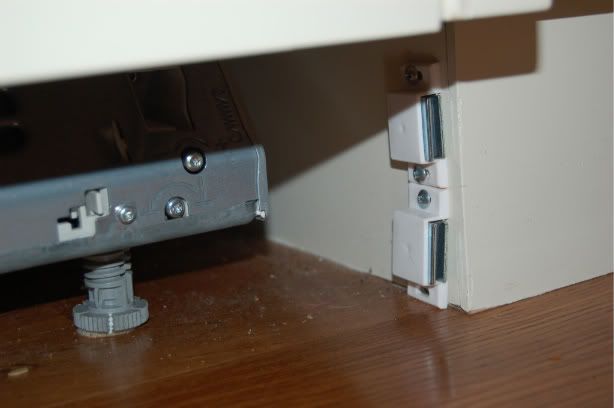

Closeup of magnets:

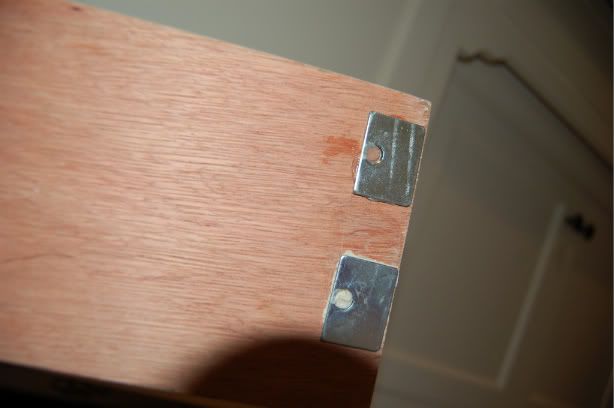

Metal pieces glued to back of toe kick:

    Bookmark   October 11, 2010 at 12:00AM
Thank you for reporting this comment. Undo
kitchen_angst

AWESOME! Thank you.

    Bookmark   October 11, 2010 at 1:38PM
Thank you for reporting this comment. Undo
toddimt

btw,

From the photo, it appears that there is a decent amount of room from the face of the magnets to the dishwasher. You could also add a piece of wood or metal, the width between the sets of magnets, secured to the back of the thinner toe kick piece to even prevent warping. It also would make it less likely to crack or warp if someone jambed their foot into the area around the center of the toekick. Might not be necessary but looks doable as reinforcement.

    Bookmark   October 12, 2010 at 12:03PM
Thank you for reporting this comment. Undo
calypsochick

"Our cabinet installer didn't use the toekick that came with our Miele. Instead he just installed the regular toekick we used everywhere else under our cabinetry. It seemed like it was easy enough to do."

The whole toekick piece is remove-able on that side. You pull it out and can snap it back onto the legs.

    Bookmark   October 14, 2010 at 10:32AM
