what are options for 11 foot wide bow window replacement - x-post

sue_bOctober 30, 2011

We have replaced every window in our 1960 ranch with Certainteed vinyl, except for this monster bow window. 6 feet tall and 11 feet wide. We are in Northern Virginia so we have a few snows and alot of sub-freezing weather and it's time to fix this drafty condensation monster. We're staying in this house probably 10-12 more years. 10 years ago the $7K bids were not in the budget so we've been saving to take this project on but don't know the best option. We love the light and the view. Professionals or experienced remodelers, what would you do? If possible can you add pix or photo sources so we can show a professional what we want? Thanks in advance.

Thank you for reporting this comment. Undo
mmarse1

First off, with a window that large I would Not be using Certainteed vinyl..Certainteed are not known for high quality windows..no offense..high quality vinyl would be Okna,, sunrise, or gorell. You install Certainteed for a bow that wide, you will have some warping and air leakage..not so with the high quality vinyl brands I mentioned.

    Bookmark   October 30, 2011 at 10:48AM
Thank you for reporting this comment. Undo
skydawggy

I agree with Mmarcel. I would be looking at either a bay or bow window made by Sunrise, Okna, Gorell or Softlite. The only other viable option would be to just replace the glass in the existing or go with a flat configuration such as a casement/picture/casement. I would not recommend the latter.

Here is a link that might be useful: Sunrise Bay/Bow Window

    Bookmark   October 30, 2011 at 11:27AM
Thank you for reporting this comment. Undo
sue_b

Thanks for that great advice. I have done a locate a dealer for each of the companies you recommended. What is this called..I think I'm asking what windows are combined is this layout instead of the layout we have now?

    Bookmark   October 30, 2011 at 11:58AM
Thank you for reporting this comment. Undo
skydawggy

The lower windows are called Awnings and the upper windows are casements. However, you would lose the "bowing" of your existing window as this would be flat against the exterior wall.

    Bookmark   October 30, 2011 at 12:13PM
Thank you for reporting this comment. Undo
sue_b

If the two on each side were operable on this example thta I like, in my case I would need six separate windows (right?) what is it called on the sides...casement? Is this an option for something 6 ft 4 inches tall? Again I thank both of your for your advice.

    Bookmark   October 30, 2011 at 12:46PM
Thank you for reporting this comment. Undo
sue_b

skydawggy, you said 'The only other viable option would be to just replace the glass in the existing or go with a flat configuration such as a casement/picture/casement. I would not recommend the latter.' My husband is talking about keeping this architectural feature the way it looks now. Can you specify why you would not recommend replacing the glass in the current grids/frames please?

    Bookmark   October 30, 2011 at 1:16PM
Thank you for reporting this comment. Undo
skydawggy

It would still require that you paint and caulk and you would not have an operable window for ventilation. OTOH if you really like the "egg crate" 1960's look, by all means, just replace the glass. You may discover that cost wise it will be less expensive to just replace the glass but it might make more sense to replace the entire window. Although technically not required by code, the lower windows should all be tempered glass and you will have to hire a contractor who is EPA certified for lead paint containment (RRP).

    Bookmark   October 30, 2011 at 3:07PM
Thank you for reporting this comment. Undo
PRO
Windows on Washington

You have your veritable pick of the litter in this case.

What do you want the window to look like at the end of the day? I would guess that you want the ability to ventilate so you are going to need some operable units.

You could go with as few as 3 units with angled mullions and keep a similar look with the proper grid pattern.

Did you determine if there was any lead paint?

    Bookmark   October 30, 2011 at 5:26PM
Thank you for reporting this comment. Undo
sue_b

We don't have lead point.

    Bookmark   October 30, 2011 at 9:58PM
Thank you for reporting this comment. Undo
PRO
Windows on Washington

That will certainly help with the cost as it pertains to the RRP requirement and containment set up.

You need to get someone out there that can help you navigate and visualize your options.

You can probably find a nice blend of aesthetics and performance from the right window combination.

    Bookmark   October 31, 2011 at 8:24PM
Thank you for reporting this comment. Undo
sue_b

Thank you very very much for the valuable advice. We got quotes on Okna, Softlite and Sunrise. We chose Soflite and this is the Bainbridge.

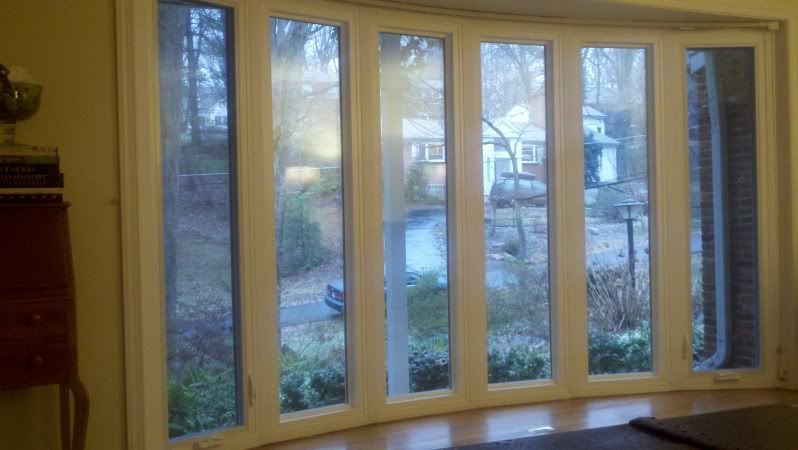

Our photo below shows what to expect when the replacements have to have "more grid" and less glass than the original in a bow or picture window. This is all tempered glass so safer if someone hits it and breaks it, it is low E argon. It was inoperable before and now the 2 casements on the end are operable, and the other 4 are picture windows. Okna and Sunrise were great options too. We found the Okna product to be significantly more expensive and for our situation that level was not what we needed. Immediately we were more comfortable and warm in the room...no more drafts.

Here is a link that might be useful: Soft-Lite Bainbridge

    Bookmark   March 25, 2012 at 2:28PM
Thank you for reporting this comment. Undo
sue_b

Correction: we got a Gorell quote, not Okna. It was Gorell that had a great product but more expensive than we were comfortable with for our situation.

    Bookmark   March 26, 2012 at 4:38PM
Thank you for reporting this comment. Undo
PRO
Windows on Washington

Turned out pretty nice looking.

Good job researching and getting a good product.

    Bookmark   March 26, 2012 at 8:57PM
Thank you for reporting this comment. Undo
Jumpilotmdm

Looks like my brothers' front porch. He lives in Burke, VA.
I rec. an Andersen casement bow, sized as close as possible to what you already have. Don't pay for a custom size as it is probably not necessary. Where you have it quoted, have them rec. an installer.
And good luck!

    Bookmark   April 9, 2012 at 4:10PM
