Tilt top table repair

franksmom_2010April 4, 2011

Hi everyone! I bought this wonderful tilt-top table at an antique shop today:

Before I bought it, I tried out the tilt mechanism, and realized that someone had screwed braces onto the top that didn't allow it to tilt. I just kind of gave it a once over, figured I'd undo them when I got it home, and paid for it. The fact that I didn't look at it more closely is totally my fault. Still love the table, though.

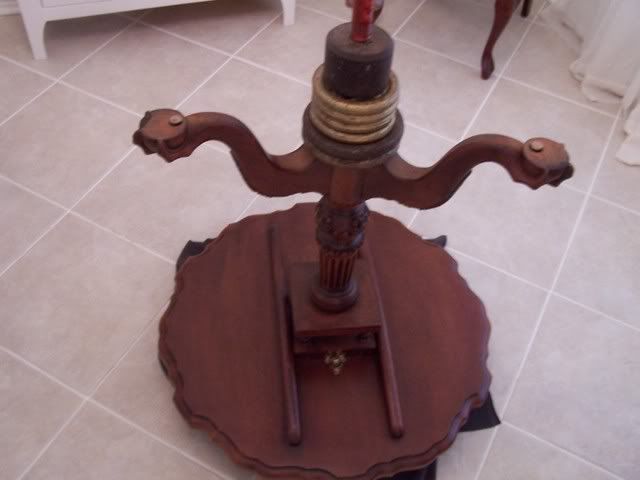

Got it home, turned it upside down, and here's the mess I found. One side of the top of the birdcage is broken off, and the dowel that the top hinges on is missing. Someone drilled a small screw through the birdcage and into the top to stabilize it on this side:

Here's the side with the original latch. They've drilled a bracket to it to stabilize this side, but they've used tiny brass screws that aren't doing much (table top still wobbles.) You can see on the left where there was another brace, but the screws have broken off at the heads one one side, and there's small splits on the top of the birdcage at the screw holes on the other side.

I'm just sick over this! It's a really lovely vintage table, and seems like it was well made. Any ideas how complicated this will be to fix? I'd think you'd need to remove the birdcage from the pedestal, take it apart, and replace the top piece, then re-assemble it with a dowel. Is this going to be a huge, expensive repair, or am I looking at less than $100?

If a proper repair is going to be cost prohibitive, is there another way to stabilize the table top without causing much more damage?

The table top has a small area of wear to the finish, and the edges are losing their finish, so I assumed I'd have to refinish the top, I just didn't think I'd have to rework all of this!

Thank you for reporting this comment. Undo

I don't know exactly how these are built, but it looks like it would be easy enough to remove the screws and bracket so that you can detach the base from the top and get a better look at the situation. If it turns out that a full repair is more work than you want to tangle with, it will probably be fairly easy to reattach the leg in a rigid, non-hinging sort of way.

    Bookmark   April 5, 2011 at 6:05AM
Thank you for reporting this comment. Undo

Hi jon1270! I'm pretty sure that if it was all intact, then there's a dowel that runs between the two apron pieces, and through the birdcage. It locks in place with the brass latch seen in the thrid picture. I'd think to get the dowel back in place, you'd also have to remove one of the apron pieces.

I guess the bigger question, is if it were perfect, what would it be worth? If it were properly repaired (with the top refinished) what would it be worth? I know it's not an antique, but rather a vintage reproduction. How vintage, I have no idea...the construction is all dowel and glue joints, but the floor glides in the bottom of the feet are plastic. As far as I can tell, it's all solid wood.

I'm leary to use anything to attach the pedestal to the top that would involve drilling or screwing into the top. If the top splits, then I'll have a much bigger problem. The one solution I did think of was the sand down the top of the birdcage and the bottom of the tabletop where they meet, and just glue them together. I'd do that after I refinished the top.

Also, any ideas what that wood is? I'm thinking it's mahogany.

    Bookmark   April 5, 2011 at 9:52AM
Thank you for reporting this comment. Undo

Huh, I replied earlier but it looks like something went wrong with that.

I understand how it's supposed to work. What I don't know is how that (broken) top part of the 'birdcage' is built. In the first picture, it looks as if there's a veneer jutting out over the broken area, so I'm thinking it might be built up from multiple parts rather than a single slab. In any case, I still think you should take out the screws and bracket so you can separate the parts and see exactly what's going on. You'll be throwing out all of that junk hardware anyhow.

I do think it's mahogany. Can't help you with the value.

    Bookmark   April 5, 2011 at 1:27PM
Thank you for reporting this comment. Undo

OK, here's lots of pics. More clues to the age of the piece:

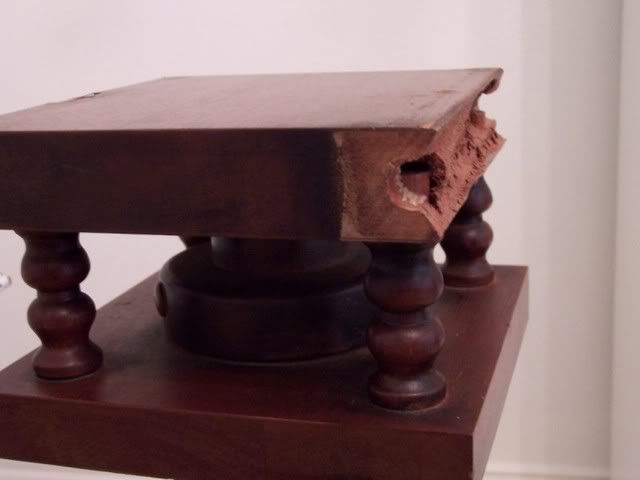

Here's the damaged area. It does look like a solid piece of wood with a veneer on it. I can see the edge of the veneer in places.

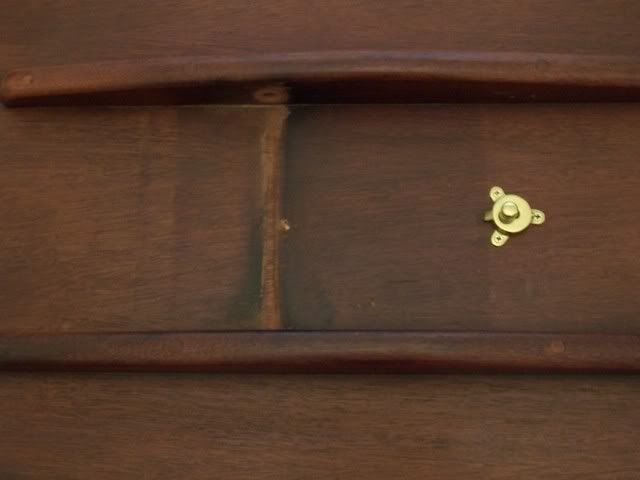

And here's the bottom side of the table top:

You can see the darkened wood where the top of the pedestal used to cover it, and where the dowel would go. It looks like I'm missing about 3" worth of wood.

And after a better look in better lighting (and cleaning), it looks like I don't need to refinish the whole table top, just this area:

What are the chances that the finish is poly, and that I could carefully sand that area with fine sandpaper, clean it with mineral spirits, and use a wipe-on poly to fix it?

    Bookmark   April 5, 2011 at 5:06PM
Thank you for reporting this comment. Undo

The broken part is not an easy fix. If you have a local furniture repair shop, you might ask them to give you a quote on the repair and compare that to whatever you estimate its value to be.

The finish is not going to be poly, but that's a good thing. Lacquer is more likely, and easier to repair. But this is getting into Bobsmyuncle's territory.

    Bookmark   April 5, 2011 at 5:29PM
Thank you for reporting this comment. Undo

After some reading, I think you're right that the finish is most likely laquer. I have one of the old George Grotz books, and read up on repairing the finish. I would clean with mineral spirits, then brush on laquer thinner to reamalgamate the finish and spread it to cover that bare spot? I hope bobsmyuncle stops by with more info...

Yes, the more I look at that damage, and think of the possible ways that it could be fixed, I'm sure it's going to be difficult and expensive.

That being said, any thoughts on my idea to just glue the two pieces together? I'd sand down to bare wood on the bottom of the table top and the top piece of the pedestal, glue and weight it down to dry. I usually use wood glue, or white Elmer's for repairs, but would you use something like Gorilla glue? Would I also need to patch on a pice of wood to add the 3" that I'm missing?

This table is going to get infrequent use.

    Bookmark   April 6, 2011 at 9:20AM
Thank you for reporting this comment. Undo

I don't have any lacquer thinner handy, but do have denatured alcohol, so I did a test, and a drop of alcohol on the finish left a white mark, but didn't soften the finish, so another indicator that the finish is lacquer.

    Bookmark   April 6, 2011 at 10:21AM
Thank you for reporting this comment. Undo

"I would clean with mineral spirits, then brush on laquer thinner to reamalgamate the finish and spread it to cover that bare spot?"

The spot is actually pretty large to try stretching from the rest of the finish to cover it.

Test on the back with lacquer thinner to make sure it is lacquer.

Deft clear wood finish is brushing lacquer with a very light color (barely yellow).

It is not hard to work with, and can produce very good results.

    Bookmark   April 6, 2011 at 10:22AM
Thank you for reporting this comment. Undo

Brickeyee, I would be brushing it on just over the damaged area, or over the whole tabletop? Thick or thin? Multiple coats?

I have zero experience with lacquer. I'll make a trip to Home Depot later today and pick up the thinner and look for the Deft. I think I saw Watco at Lowes the other day, too.

    Bookmark   April 6, 2011 at 11:17AM
Thank you for reporting this comment. Undo

The big problem with the spot on the top of the table might be restoring the color. That would be one of the major challenges with a spot repair.

There are "strippers" or "refinishers" known as ATM (Acetone, Toluene, Methanol), basically one formulation of a lacquer thinner. Homer Formby became a rich man selling lacquer thinner as furniture restorer (and thinned varnish as tung oil). This would be the "smear it around approach." But I'd probably want to add some more finish (lacquer or shellac) once I'd reamalgamated the finish.

Or just bite the bullet, mask off the top, strip it, and refinish.

    Bookmark   April 6, 2011 at 6:24PM
Thank you for reporting this comment. Undo

Thanks so much! I actually have a can of that in the garage...I just used some on another table a few weeks ago, with ok results. Tip- use a brush, not steel wool. If I go that route, and want to add another coat, any opinions on the spray lacquer (in a can)or brush on?

Again, any opinions on how to fix the issue of how to secure the top to the pedestal? Is my idea to glue just a bad idea?

    Bookmark   April 6, 2011 at 7:09PM
Thank you for reporting this comment. Undo

If you cleaned the parts down to bare wood, the glue plan would probably work well enough. Use as much weight as you think you can get away with to apply clamping pressure. Standard yellow wood glue is fine.

    Bookmark   April 7, 2011 at 6:04AM
Thank you for reporting this comment. Undo

"Standard yellow wood glue is fine."

Hide glue would be preferred, even liquid hide glue.

It is at least reversible if needed.

I would make one try and using lacquer thinner to spread the existing finish, then use some toning lacquer to fix the spot and put another coat of lacquer over the entire top.

    Bookmark   April 7, 2011 at 7:57PM
Thank you for reporting this comment. Undo

Thank you, thank you, thank you!!!

Everyone has given really helpful advice. I was starting to wonder if I had totally thrown away my money on this table. I'm starting to feel like it can be saved, and I'll have a wonderful functional piece when I'm all done.

I'm going to work on the top finish first, and when that is all dried and cured, will work on the gluing project.

After a quick internet search, would Titebond liquid hide glue be appropriate? I really like the idea of a reversible repair.

    Bookmark   April 7, 2011 at 9:31PM
Thank you for reporting this comment. Undo

"Titebond liquid hide glue be appropriate"

Better than yellow glue by along shot (stronger also, with no creep).

I use it for smaller jobs when I do not want to wait for the glue pot to heat up.

The table is in good enough shape to be worth some effort, how much is up to you.

I have some mahogany in the basement that is 48 inches wide and 18 feet long (5/4 thick).
A square has already been cut off the plank and turning started for a Philadelphia style tilt top.

    Bookmark   April 8, 2011 at 11:13AM
Thank you for reporting this comment. Undo

Brickeyee, that table sounds like it's going to be fabulous!

So, I've been shopping. I have lacquer thinner, a new clean brush, and a bottle of Titebond liquid hide glue. That glue was a chore to find, and I bought the only bottle available in 20 miles!

I've decided to do the glue part first. I figure *just in case* something happens to the finish during all of that, I can redo it all in one step.

I've been thinking out how best to weight the whole thing while the glue dries. I don't want to put excessive pressure on either that piecrust edge or the legs, so plan to turn it upside down, with the center of the table on bricks or books, or something to elevate it (protecting the top surface with an old towel or rags), then use a stack of books, bag of rocks, DH's weights, etc. right in the center of the pedestal. I'm going to poke around the garage and see what I can find that's small and heavy.

When the glue is all dried, I'll work on the tabletop. I may need a cocktail before I get to that...I'll try the one pass with the thinner and see where it gets me. Oh, and I was happy to see Deft lacquer in brushing and spray form at every hardware store I went to today!!

Everyone has been so helpful, and I'll be sure to post pics as I progress. Thanks again!!

    Bookmark   April 8, 2011 at 9:48PM
Thank you for reporting this comment. Undo

"that table sounds like it's going to be fabulous! "

It better be, the piece of wood cost over $2,000 (but should yield at least 3-4 tables).

The big problem is getting my low speed lathe up and running again.

The diameter is co large you need to use low speed on the perimeter, but than be able to increase it for a good cut near the middle.
It gets a little hairy with a ~48 inch disk rotating at anything but the lowest speed.

    Bookmark   April 9, 2011 at 9:00AM
Thank you for reporting this comment. Undo

Brick, stand to the side, not in front of that monster. It will contain many Newton metres of energy when spun. You could always use a router to dish out the tabletop, What if the wood begins to react while being dished? It may want to turn into a potato chip on you, then what? I guess that's why these things were never made out of walnut, just mahogany, the least prone to react.

    Bookmark   April 9, 2011 at 9:28AM
Thank you for reporting this comment. Undo

Aww, 4' isn't so bad if you're conservative about it.

I was a foundry pattern maker for 9 years, and one shop I worked for had a lathe that could handle 11' between centers, a 6' diameter over the bed (the biggest I ever did) or a 12' diameter faceplate on the outside. For the latter, you had to remove a trapdoor-like panel so that the faceplate and turning could rotate down into the recess in the floor.

I never saw a lathe accident, but I did hear stories. Shortly before I was hired at that shop, the owner himself had glued up an 18" deep by 5' diameter segmented blank on a faceplate, and didn't allow the glue to dry before beginning to turn. Not long after he started the lathe, the blank exploded. It took out every fluorescent light in line with the faceplate, all the way across the shop (a distance of 50' or so) and a chunk so large that it took 4 people to carry went through the corrugated steel roof and landed in the parking lot. Fortunately the owner had stepped aside to check the blueprint when the thing came apart.

Most of the guys who'd worked at the shop when that happened preferred to avoid the lathe altogether, which is a shame. Big turnings are fun.

    Bookmark   April 9, 2011 at 9:46AM
Thank you for reporting this comment. Undo

You guys be careful out there! Wood can kill!

OK, so we've got progress! It's definitely lacquer, and it definitely has a brownish toner in it. I used the lacquer thinner to remove the finish on the birdcage top and table bottom. Sanded with 120 grit, then cleaned up with mineral spirits. Let it dry a few hours (I know, just in case) then rigged up this:

I have a layer of bricks, a round piece of plywood slightly smaller than the top, a soft piece of cloth, then the table. Thick-ish layer of glue, all weighted down with about 30 pounds borrowed from DH. It's warm and humid today, so I'm letting it dry overnight before I touch it. Probably overkill, but I don't want to mess it up.

When I work up the nerve, I'm fixing the top. It's supposed to rain tonight/tomorrow morning, but Tuesday it's supposed to be 82, not as humid and not as windy.

    Bookmark   April 10, 2011 at 2:22PM
Thank you for reporting this comment. Undo

The setup uses a couple of jack shafts and an old DC motor for good speed control.

Most of the frame is welded up from 3x3 inch 1/4 inch wall steel tube, then bolted down to the floor very solidly.

The wood is very stable, showing no signs of warping after sitting around being checked about every month for the better part of 9 months.

I have done this all before, and actually have considered making a gantry hanging from the ceiling to hold a router, and then spin the wood under it by hand on some bearings.

It would probably be safer overall, but I have the frame for the lathe already from previous work making LARGE turned columns (separate headstock and tail stock that are aligned and bolted to a concrete floor at the length needed).

    Bookmark   April 10, 2011 at 3:17PM
Thank you for reporting this comment. Undo

To those who doubted that the remaining finish could just be disolved and spread over the damaged area...I bow to your greatness. That turned out to just be a mess.

I suspect that the damage occured when someone used nail polish on a cotton ball to remove whatever. I didn't realize there were tiny bits of cottony debris on the finish, and when I went over it with the lacquer thinner and brush, it just spread that all around, and removed what was left of the finish over that spot.

So, the next step is to strip and refinish the whole top. Since I know that the current finish has a brown toner, and since the brushing lacquer is slightly yellow, will I want to stain the top after I remove the rest of the finish?

On the parts where I removed the finish and glued, it was significantly lighter than the surrounding finished wood, so...maybe a mix of natural/mahagony/walnut, thinned just so, to match the rest of the table?

By the way, the glue repair seems to be quite sturdy, and I'm really happy with how it turned out.

    Bookmark   April 14, 2011 at 10:07PM
Thank you for reporting this comment. Undo

I just picked up a very similar table. Mine has a plate that says Kittinger Furniture Co. Mine works fine but has damaged molding on the top. I picked it up anyway because the base was in perfect shape and looked well made. But don't know what to do about repairing the missing molding edges on the top.

    Bookmark   January 3, 2012 at 4:01PM
