New pool build in Tennessee

jsldhJuly 5, 2010

We've been living in our new home for 2 years and signed our contract to build a pool a month ago They started the dig today after a 2 week delay due to rain. The specs are below and I must say, this forum has helped me tremendously with all of the little details such as coping, tile, etc.

19 x 39 freeform

3'6" to 6'6" depth

9 ft. diameter spa, 8 jets, with stacked stone spillover

beach shelf with 3 bubblers

low weeping boulder wall

~3.5 ft retainer wall along back of pool (our yard slopes down)

Coping and veneer on spa and retaining wall: Oklahoma field stone

Waterline tile: Rust

French Gray Hydrazzo

1050 sq ft decking, washed

Equipment (from contract):

Whisperflow 1.5 HP (one for pool and one for spa)

Polaris 480

400,000 BTU heater

Vision Sanitizer

RS4 controller

If I'm leaving anything out, let me know. I quickly skimmed the quote sheet and contract.

Today they did the "basic" dig. I didn't realize that they would hardly dig the shallow end. :-) They are going to be adding a lot of fill dirt around our pool! Our yard slopes down. We went with our builder's idea of having a retainer wall at the back of the pool. During heavy rains we have a lot of water flow at the rear of our lot.

Tomorrow is to finish forming the pool and rebar.

Here are some pics from today. We're so excited and can't believe it's finally a reality!

Thank you for reporting this comment. Undo

Beautiful setting for your pool! Like the shape also. I wanted to share from my own experience that It appears to me that much of your pool will be above ground. The same thing happened to us but only because of the error of the guy who dug! I would suggest that you ask for sketches as to how it will look finished. Are you going to have to have retaining walls on all sides/ fill dirt sloped? The shallow end looks just a foot deep which means 3 above ground. I don't say this to alarm you at all. I just don't want anyone else to experience the same thing that I did. Our pool on the shallow end was a foot more out of the ground that it was supposed to be! Which meant that the other end is out of the ground about 4 feet. Sloping the soil would have been a problem to deal with in our yard.Hopefully yours will be better than ours!
Look forward to following your progress!

    Bookmark   July 6, 2010 at 11:24AM
Thank you for reporting this comment. Undo

We have pictures of previous pools that he has done and they look great. Our deck will be flush with our patio. Looking at the pool from our house, you won't be able to tell at all. We will have three steps on each side of the pool going down to that lower level. We are going to have decking on the back side of the pool and put in a fire pit on down the road.

They are out there now forming the pool and doing the steel work. I'll try to post pics later today when they finish.

    Bookmark   July 6, 2010 at 11:58AM
Thank you for reporting this comment. Undo

That is great! Look forward to the pictures!

    Bookmark   July 6, 2010 at 4:26PM
Thank you for reporting this comment. Undo

Today they spent the day forming the pool. After you see today's pics, yes, it looks like an above ground pool. The plan was to have our pool flush with our patio. So, the back and part of the side will have retainage. There will be three 6" risers going down on each side of the pool.

With all that said, we have some concerns. Today we went out and measured the top-most form and it shows that the water line is what is currently flush with our patio, not the coping. My husband is calling our pool builder first thing in the morning and is going to have him come over to take a look. If anyone here can contribute with your thoughts, it would be appreciated.

Here is our design:

Here you can see how our yard slopes down

View from patio

View from side

    Bookmark   July 6, 2010 at 8:08PM
Thank you for reporting this comment. Undo

Our builder did come by this morning and clarified a lot of things that concerned us. It is very hard at this point for me to visualize everything. The pool will be sloped up to keep rainwater out and sloped a little down from the patio. He will be putting in channel drains as well. Also, the back wall, which measures 3.5 feet right now, will only be 2 feet after they fill in with dirt and decking. Whew! I'm so relieved!! He said they plan to use about 15 loads of dirt for the whole

They are doing rebar right now and I'll try to post pics this evening.

    Bookmark   July 7, 2010 at 1:06PM
Thank you for reporting this comment. Undo

Rebar is finished! They have spent the last two days doing rebar and the pre-plumbing in the pool and spa. They are moving along really fast. The electrician is coming to inspect the light niches tomorrow. Tuesday is gunite. I don't know what they're doing Monday...maybe finish the plumbing??

Sunshelf and bubblers

    Bookmark   July 8, 2010 at 11:59PM
Thank you for reporting this comment. Undo

Inspection for the light niches was today. Spa passed, pool failed because it wasn't 18 inches below the water line. The guys came out and fixed it and the inspector came shortly after and approved it. We realized today that they only put 6 jets in the spa instead of 8 as it was stated in the contract. The PB owner said they would be back tomorrow. Gunite is Tuesday!

I have a question for the experts out there. We will be having a 29 ft. weeping wall. They have done the rough plumbing in the pool. Should we be seeing any plumbing in that location? All we see are the water return jets.

    Bookmark   July 9, 2010 at 8:37PM
Thank you for reporting this comment. Undo

They laid our plumbing for the weeping wall after gunite..

    Bookmark   July 9, 2010 at 10:24PM
Thank you for reporting this comment. Undo

That picture is worth a thousand words! Thank you so much!

    Bookmark   July 9, 2010 at 11:25PM
Thank you for reporting this comment. Undo

just curious to ask who is the PB?

    Bookmark   July 10, 2010 at 8:41AM
Thank you for reporting this comment. Undo

Our PB owner came by this morning to give our pool a look before gunite goes in Monday. They got so much done this first week and we couldn't be happier with them so far.

Our builder is Wieland Pools.

    Bookmark   July 10, 2010 at 7:46PM
Thank you for reporting this comment. Undo

Hello jsldh

We are in the process of getting quotes from different pool builders in the Memphis area. We live in Olive Branch, MS.

Do you mind sharing the cost for your pool and have you been happy with your PB. Our wants are very similiar to yours minus the spa. And our yard slopes alttle also. It is great to visualize what our pool would look like in our back yard with similiar situations.

Do you like the french grey hydrazzo? I can't decide which color to use. I thought about the maui midnight or hatteras grey.

What are your measurements on your beach shelf. Are you going to post more pics of your pool? I would love to see the end results.

    Bookmark   August 7, 2010 at 12:00AM
Thank you for reporting this comment. Undo

Hi lott4043. I haven't been on the forum in a little while. I just started back to work last week and I just quit posting since I didn't see any interest.

Our pool is pricey. Adding a spa is about 8,000 more dollars. So far, we've been very happy. We've had a few hiccups but the PB has handled everything immediately.

We got a quote from Ogden Pools and Memphis Pool as well. Ogden was very nice but when it came time for a quote, he didn't include a detailed quote, so we knew in the end we would go WAY over budget. He kept saying, "We can add that later".... the hydrazzo itself is costing 8500 dollars and he didn't even add that on to the quote...or electrical or plumbing and countless other things.

I heard Memphis Pool was too commercial and had too many crews out there to ensure you were getting a quality built pool. The salesman was just a salesman...not a true builder.

I'm not sure about the size of our sunshelf, but it can easily fit two lounge chairs.

I'll post some pics this weekend of our progress. Right now we are in the process of the stonework getting done. It's gotten really slow since the gunite was put in.

No hydrazzo yet...I've seen pics of the french gray but not in person. We want the water dark but not too dark.

Our PB said the maui midnight would be too dark for our tastes.

    Bookmark   August 12, 2010 at 8:57PM
Thank you for reporting this comment. Undo

I look forward to seeing the pictures! I like your pool thus far and it sounds great!

    Bookmark   August 12, 2010 at 9:34PM
Thank you for reporting this comment. Undo

A lot of progress since my last post. We now have gunite, plumbing is done, and stone work is underway. They had to tear down the weeping wall and start over on it, because I wasn't happy with it. They merely just made a stacked wall, with no stones jutting out for the water to fall over. They started redoing it today and it's looking much better.

The hot weather has slowed down the build. We've had a heat index each day of 110-115.

Thanks for looking!!


    Bookmark   August 14, 2010 at 6:25PM
Thank you for reporting this comment. Undo

Nice! Love your coping and stone work. I'm especially interested in your design because ours is very similar in that we have a set back like yours and are on a slope which will require us to have a retaining wall. Like you, we really need to optimize our space because of the set back. However, now that I'm looking at your design, I'm going to have our designer take a look at it because I think your solution - the rock wall on the set back side - would work and end up being more cost effective than backfilling and a paver retaining wall.

Can you tell me how tall the back retaining wall will be from deck to top of coping? Looks about 3 or 4 feet? Is there a safety concern about swimmers standing on that back wall and falling off onto the patio/deck below?? Our initial plan has the coping, then about a foot of river rock with a fence sitting on top of that expensive (8K) retaining wall. I like your idea better, just wondering if the drop to the patio/deck is up to code.

Looking forward to following your build. It looks awesome so far.

    Bookmark   August 14, 2010 at 8:48PM
Thank you for reporting this comment. Undo

Beautiful! The rockwork is awesome!

    Bookmark   August 14, 2010 at 9:57PM
Thank you for reporting this comment. Undo

It is looking sooo good! I look forward to seeing more.

    Bookmark   August 15, 2010 at 9:14PM
Thank you for reporting this comment. Undo

They got finished with the stone work last week. Our PB told us that we should be swimming by Labor Day. I sure hope so!!!

They did some final dirt work Saturday to get ready for the decking to be poured on Thursday. After that will be hydrazzo and then the big fill! We are thrilled with how well it's all coming together.

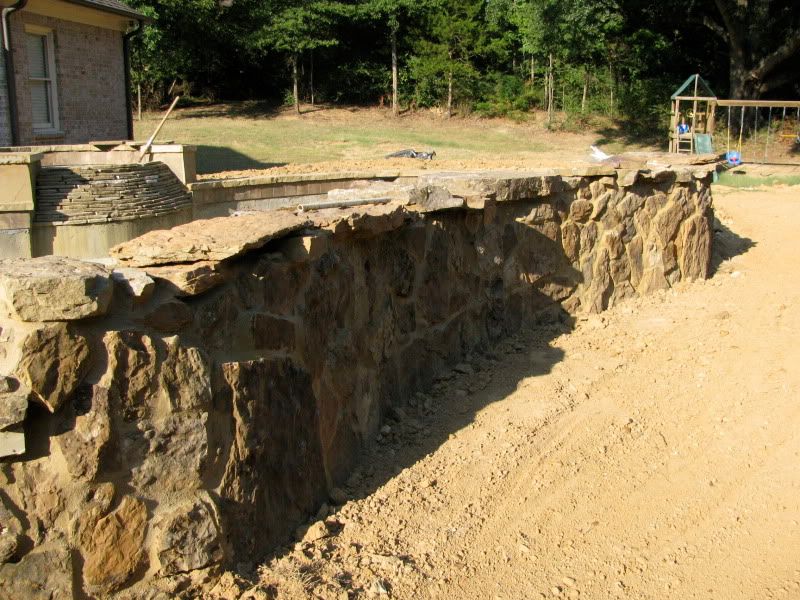

Banana_fanna, the weeping wall on the back is 32 inches high. This is taking into account the decking once it is poured.

Back of weeping wall

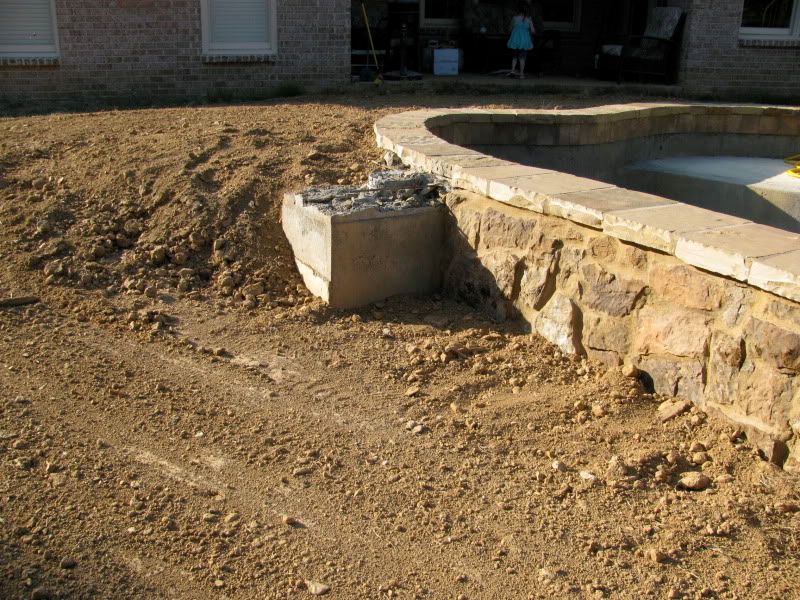

Three 6" risers will go here due to change in slope

Close up of tile...Noble Rust...the pic doesn't do it justice since the coping is still so dusty.

    Bookmark   August 23, 2010 at 7:22PM
Thank you for reporting this comment. Undo

Wow! Your job is moving right along. The OK fieldstone was a brilliant choice. It looks like it's going to complement the brick on your house perfectly. And your coping? The heft and color? To die for. Can't wait to see it finished.

The picture of your little girl in the pool is not only cute but it's helpful. The angle of that photo lets me visualize how my back wall and risers could look. I think doing it your way is going to save us a lot of money by not doing a ribbon of cement and then a retaining wall on that far side of our pool. If it DOES work out to be a savings, I'm splurging on something cool for my coping. Fieldstone?? :-)
Thanks. Keep the updates coming

    Bookmark   August 24, 2010 at 7:19PM
Thank you for reporting this comment. Undo

One PB we talked with had the design calling for retainer walls all across the back of our house. For one it was expensive and two, I am NOT going to deal with that much landscaping! :-)
