Blacksmithing

blacksmithmanSeptember 17, 2004

Here are a few of my projects.

Thank you for reporting this comment. Undo
kbeitz

What did you use to bend your curves ???
Looks good....

    Bookmark   September 17, 2004 at 8:21PM
Thank you for reporting this comment. Undo
gonefishin

Looks like you truely are an artisan Blacksmithman. Very nice work.
Bill P.

    Bookmark   September 17, 2004 at 10:03PM
Thank you for reporting this comment. Undo
Pooh Bear

My wife is wanting a small iron table and chairs for the back deck.
Told her when she buys me a welder I will make them for her.

Did you make those leafs and berrys too. How?

Pooh Bear

    Bookmark   September 17, 2004 at 10:15PM
Thank you for reporting this comment. Undo
mike_lane

Very good work . I wish I had the talent to make things like you do.

    Bookmark   September 19, 2004 at 9:06AM
Thank you for reporting this comment. Undo
blacksmithman

I love working with hot metal. It a new form of metal fabricating I just started.

Kevin - I make a template welded to some scrap flat sheet stock to form my repeated curves or radius. I heat my stock using a coal forge and clamp one end and pound or bend the material into place. I can use the horn on the anvil also. I do have a hand bender with different diameter round dies to for small rounds.

Pooh Bear - I made a special tool I mount on my anvil which I use to bound the vains on my leafs. It is a "C" shaped punching tool with a punch that looks like a curved chisel. I hold the red hot stock with tongs and hit the spring return "chisel" to form the vains on the leaf. The "grapes" I make by resistance welding a wire to ball bearings. I mig weld the 1/32 diameter curled wire and the leaves to the 1/8 diameter stem which gets welded to the frame.

I will post some more pictures of my tools and me working on the hot metal in the future.

    Bookmark   September 20, 2004 at 8:26AM
Thank you for reporting this comment. Undo
blacksmithman

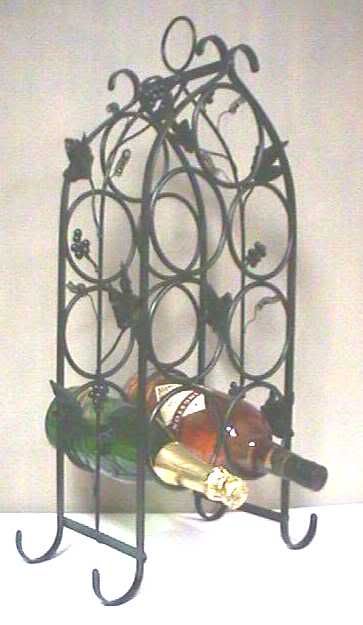

The finished wine rack was missing from my original post here it is.

    Bookmark   September 20, 2004 at 10:07AM
Thank you for reporting this comment. Undo
JoeJ

I too have many "homemade fixtures" for bending circles and such. One thing I also did was to add a stub of 2" sq. tube to the bottom of each. This would fit in a fixture I made that came out of the hitch on the back of my truck, and up to waist high. Many are just 1" cuts of various dia. pipe.

I would love to see a pic or 2 of your spring loaded chisel

Joe

    Bookmark   September 20, 2004 at 10:16AM
Thank you for reporting this comment. Undo
davidwczerr

Great looking stuff you've got there! How'd you do the rings for the wine rack? Metal bender, or some kind of ring roll or slip roll? I've seen pics for a homemade ring roll that I need to make some day to get nice circles.........

David

    Bookmark   September 20, 2004 at 8:50PM
Thank you for reporting this comment. Undo
blacksmithman

davidwczerr - I used a welding positioner that had a chuck attached and I used a pipe to form a long coil which I then cut up and welded to form rings. I just purchased a ring rolling fixture but it will not roll 1/4 diameter rod to a 4" I.D. needed for the wine rack. It may roll 3/16 to that size but I havent tried it. I bought it from Harbor Freight. It will also roll flat strips. I will try to get some pictures of my tools in the future.

    Bookmark   September 21, 2004 at 8:05AM
