AC unit won't stop leaking!

tikilynSeptember 13, 2011

The unit is a york, was installed in 2004 and was installed in a closet on the second floor of my house. In 2008 we had a major leak that ruined the garage ceiling. It was a big mess and we used our insurance to cover the repairs. Now it's 2011 and it's leaking again and it ruin my garage ceiling again! We have our unit cleaned once a year.

I called out an ac repair man, he said the unit wasn't level and the platform had to be rebuilt so the unit will sit level. The unit was leaking a small amount of water for sometime and rotted the right hand front side of the platform and was making the water drain away from the drain line. So I had them come in take out the unit build a new platform and clean the unit (it was time for the cleaning). So they get it all done and not even 24 hrs later the unit is leaking again. The repair man came back yesterday reworked the drain pipes and that didn't work. He said the unit was in good shape and he can't figure out why it's still leaking.

Can anyone give suggestions what could be happening? I'm so frustrated I just want to cry. I hate this house!

Thank you for reporting this comment. Undo
willtv

I don't know if this will fix your problem but here goes.
We have an air handler in the attic of our house that leaked condensate onto the ceiling of one of the upstairs bedrooms. We've lived in the house for 23 years and never had this prob;lem.
It turns out that the condensate line became clogged. The water had nowhere to go so it backed up into the unit and leaked onto the ceiling.
Check to see if your drain line is clogged. If so snake it out.
Good luck.

    Bookmark   September 13, 2011 at 11:44PM
Thank you for reporting this comment. Undo
tikilyn

The repair guy said all the lines were clear. My unit only has one drain pipe and the second opening has a red plug. He opened the red plug and you would think the water would drain out of it. It was almost like the water was getting sucked towards the side of the unit and not into the drain pipe.

    Bookmark   September 14, 2011 at 12:21AM
Thank you for reporting this comment. Undo
fluffybunnysui

Is the unit on laid on its side or is it standing upright? If its on it's side, there should be a secondary pan under the entire unit to prevent ceilings getting wet.

    Bookmark   September 14, 2011 at 8:59AM
Thank you for reporting this comment. Undo
willtv

Here's what I'd try.
I'd disconnect the condensate hose from the unit and see if water is exiting the unit.
If it is, the problem has to be in the condensate line.
If not, the problem lies in the unit.

    Bookmark   September 14, 2011 at 10:32AM
Thank you for reporting this comment. Undo
tikilyn

fluffybunnysui - the unit sits upright on a wood platform in a closet. The unit only has one drain tube exiting the unit into the plumbing. We also live in a high humidity area.

Willtv - I'm thinking it might be the unit itself because the line is clean. Some water does drain out but not enough. Like when the unit shuts off some water will drain out of the unit via the drain pipe but there is so much water that it overflows into the return vent area.

Thanks

    Bookmark   September 14, 2011 at 11:53AM
Thank you for reporting this comment. Undo
brickeyee

"It turns out that the condensate line became clogged. The water had nowhere to go so it backed up into the unit and leaked onto the ceiling. "

Any system installed so that a backup of the main condensate line could cause damage is supposed to have a backup pan to catch the condensate.

The backup should have a separate drain line, but sometimes a float switch in the pan is used to turn off the AC if water enters the pan.

Without a drain line, removing the water is left as an exercise for the owner and technician.

    Bookmark   September 14, 2011 at 12:09PM
Thank you for reporting this comment. Undo
heatseeker

wow thats i can't beleive he rebuilt the whole platform and it was just a clogged line. I hope you got your money back.

    Bookmark   September 14, 2011 at 2:49PM
Thank you for reporting this comment. Undo
tikilyn

The line was never clogged! We poured a ton of water in it and drained out without any back up. It just seems like the unit is over producing water and it's not going into the drain line at all even though it's clean and open, it's tilted in the right direction so the water will go down.

The platform had to be rebuilt. The first one was made out of particle/chip board and not solid plywood. It got wet and started to rot and made the unit lean to the right away from the drain pipe. But now the unit is still leaking.

I might just throw in the towel and buy a new unit.

    Bookmark   September 14, 2011 at 4:24PM
Thank you for reporting this comment. Undo
willtv

tikilyn. Just for laughs and if it's possible, try snaking the unit. When my back-up happened in addition to snaking the line. I also adapted the hose from my shop-vac and suctioned the line also. I'd try this before I threw in the towel.

brickeyee, My units were installed, believe it or not, in the 60's. So no drip pan and in fact, before I installed them, no returns either.

    Bookmark   September 14, 2011 at 4:48PM
Thank you for reporting this comment. Undo
fluffybunnysui

It's not the drain.... it's the coil itself. Im betting you have a York FRP or a FFP series airhandler. You need to look at the coil itself. These coils have very tight spacing on the fins and even though it might not look dirty, it probably is. Look up inside the coil from the bottom and see how dirty it is. Watch it for a while and see where its leaking from. I bet it's from the back inside somewhere. If it is leaking, then all you need is a good coil cleaning. Let me know what the inside units model & serial number is.

Hope this helps

    Bookmark   September 14, 2011 at 5:20PM
Thank you for reporting this comment. Undo
tikilyn

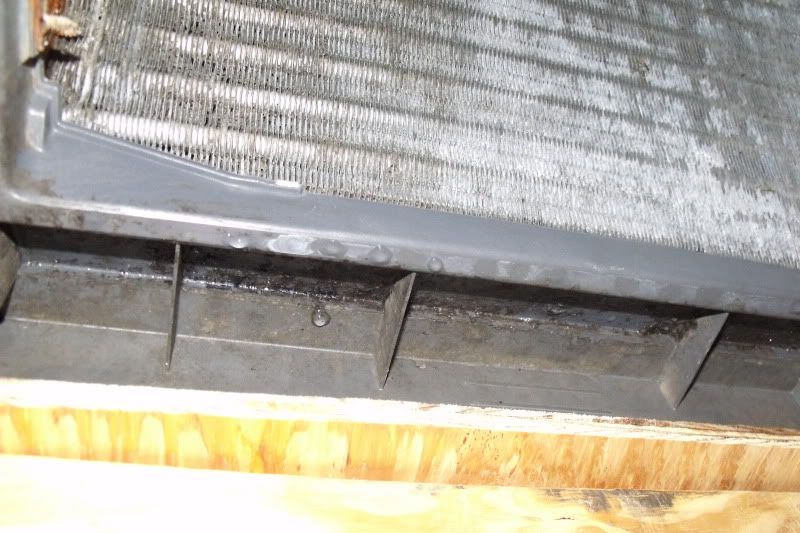

I took some pictures. The unit had just turned back on so not as much water was leaking yet.

I opened the second drain whole and not water was coming out. When I stuck my finger inside I felt the air blowing to the left. You can also see the open space to the left filling up with water.

you can see water dripping.


see the whole next to the red plug. That is filling up with water.

y'all are such a great help! Thank you

    Bookmark   September 14, 2011 at 7:43PM
Thank you for reporting this comment. Undo
fluffybunnysui

I pulled up your unit.

Like i said before...1st thing i would do is wash the coil. Take the pan off the coil as well as the metal deflector at the top of the coil. Make sure you can see all the way threw it, that the pan is clean inside and out. Of course make sure you dont have any cracks in the pan as well as having a "Pee" trap on the drain line.

Hope this helps

    Bookmark   September 14, 2011 at 8:44PM
Thank you for reporting this comment. Undo
tikilyn

fluffybunnysui is there anyway you can enlarge that? I can't make out the info,it's to small. LOL Thank you so much for your help. Looking back at the coil pictures it does still look dirty. My repair guy is coming back out on Saturday and I'll show him the pictures I took.

Thanks again

    Bookmark   September 14, 2011 at 9:28PM
Thank you for reporting this comment. Undo
fluffybunnysui

Here is the best i can do...

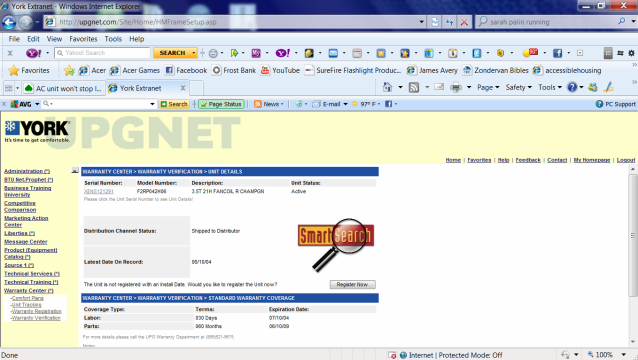

Serial Number: Model Number: Description: Unit Status:
XENS121291 F2RP042H06 3.5T 21H FANCOIL R CHAMPGN Active
Please click the Unit Serial Number to see Unit Details!

Distribution Channel Status: Shipped to Distributor
Latest Date On Record: 06/10/04
The Unit is not registered with an Install Date. Would you like to register the Unit now?
WARRANTY CENTER > Warranty Verification > Standard Warranty Coverage
Coverage Type: Terms: Expiration Date:
Labor: 030 Days 07/10/04
Parts: 060 Months 06/10/09

WARRANTY CENTER > Unit Tracking Data > Serial Number Detail
Unit Serial Number XENS121291
Status Active Status Date
Product ID/Style F2RP042H06 Description 3.5T 21H FANCOIL R CHAMPGN
Date Produced 05/11/04 Location 67
Shift 1 Lot M188150
Customer Information
Customer 0010015375 Name JOHNSON SUPPLY
Date Shipped 06/10/04 Shipper Nbr 01530746
Invoice/Sales Order Nbr 04I083032
Dealer Information
Dealer Name
Date Sold Date Reported
Consumer Information
Consumer Date Registered
Date Installed Owner Ind
Recall Date
Dealer Dealer Name

[Warranty Verification ]
[Locations ]

Back

    Bookmark   September 14, 2011 at 11:18PM
Thank you for reporting this comment. Undo
heatseeker

there should be a vent to releive the negative pressure and prevent suction inside unit. Also clean evap pan and add p-trap should fix problem.

    Bookmark   September 15, 2011 at 8:37AM
Thank you for reporting this comment. Undo
energy_rater_la

what does the top of the closet look like?
is it open to the attic or closed off?
can you post pics of that?

best of luck.

    Bookmark   September 15, 2011 at 10:57PM
Thank you for reporting this comment. Undo
brickeyee

That is a filthy evaporator.

    Bookmark   September 16, 2011 at 2:46AM
Thank you for reporting this comment. Undo
heatseeker

that evap is pretty clean in comparison to most i look at,.

    Bookmark   September 16, 2011 at 8:41AM
Thank you for reporting this comment. Undo
tikilyn

I'm really disappointed with the cleaning because it was cleaned last saturday. I don't think it should be this dirty in a week. So I'm going to ask him to clean it again. Hope these pictures help. I also added a picture of the p traps. I don't know if the plumber is going to leave it like this.

    Bookmark   September 16, 2011 at 1:09PM
Thank you for reporting this comment. Undo
brickeyee

Is there a filter in the return duct?

    Bookmark   December 13, 2012 at 5:48PM
