Help with Exterior Window Trim

dhustonSeptember 30, 2011

New windows started going in today. Was planning on using 5/4 Miratec trim for windows. The windows dont have a J channel but do have a slight lip around the face that forms a small channel. Lip is probably 1/8 inch and the channel looks to be about an inch deep. 5/4 trim want go into channel due to flange. I was thinking about rabbeting some off the miratec to get into the channel and have a nice caulk joint. My carpenters that will be putting the stuff up wanted to switch to 2x material for the trim which will stick out alot around the window. I dont think that will look good. Also concerned about expansion with the trim tight to the window. Any advice?

Thank you for reporting this comment. Undo

I dont understand why going to 2X will help the rabbet situation? I guess because it will be easier to rabbet? I think your right to be concerned about the reveal. Stick with the Miratec if possible.

    Bookmark   October 2, 2011 at 8:52PM
Thank you for reporting this comment. Undo

The carpenters think it will better with 2x trim because it will stick out past the window. The Miratec is almost flush with window and i think they are concerned about caulking the joint. Here are some pics to help explain more

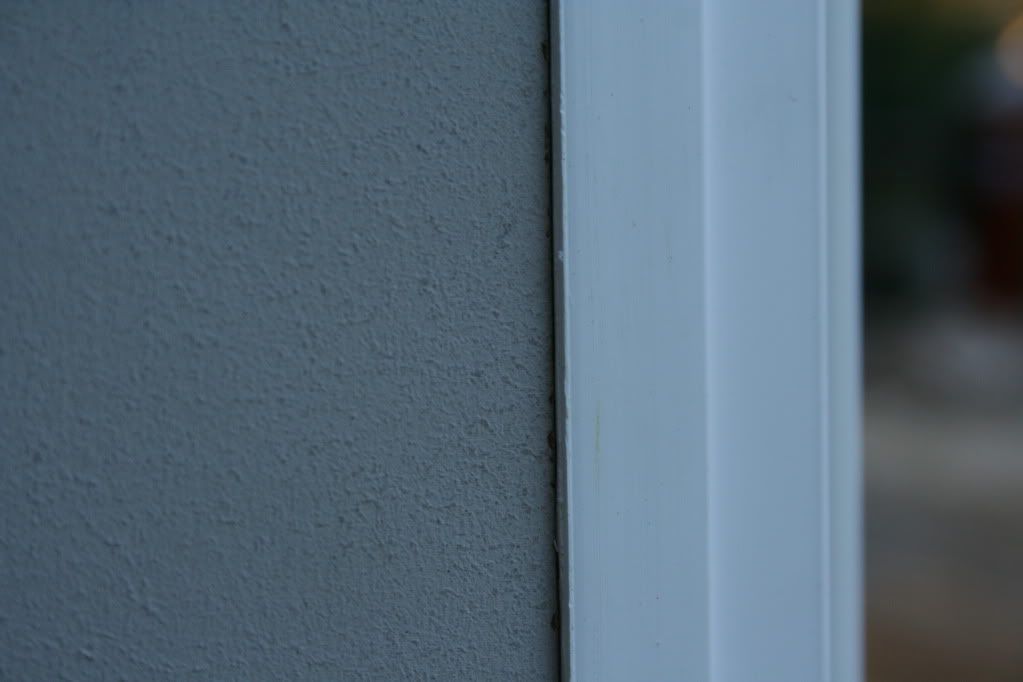

This show the lip and channel that I was talking about

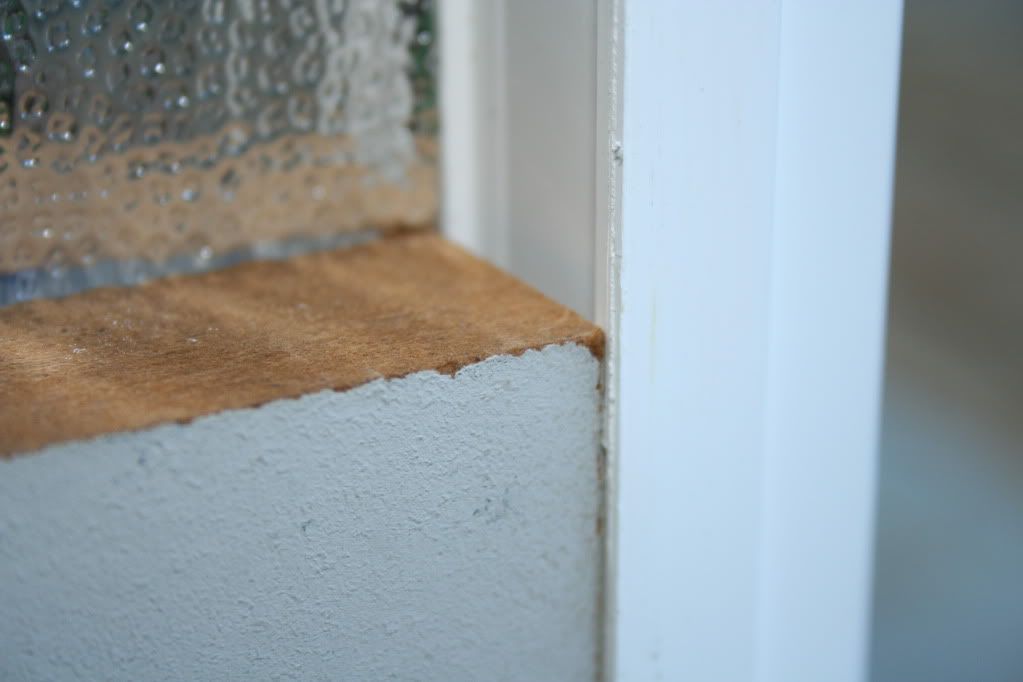

This show the miratec flush to the lip

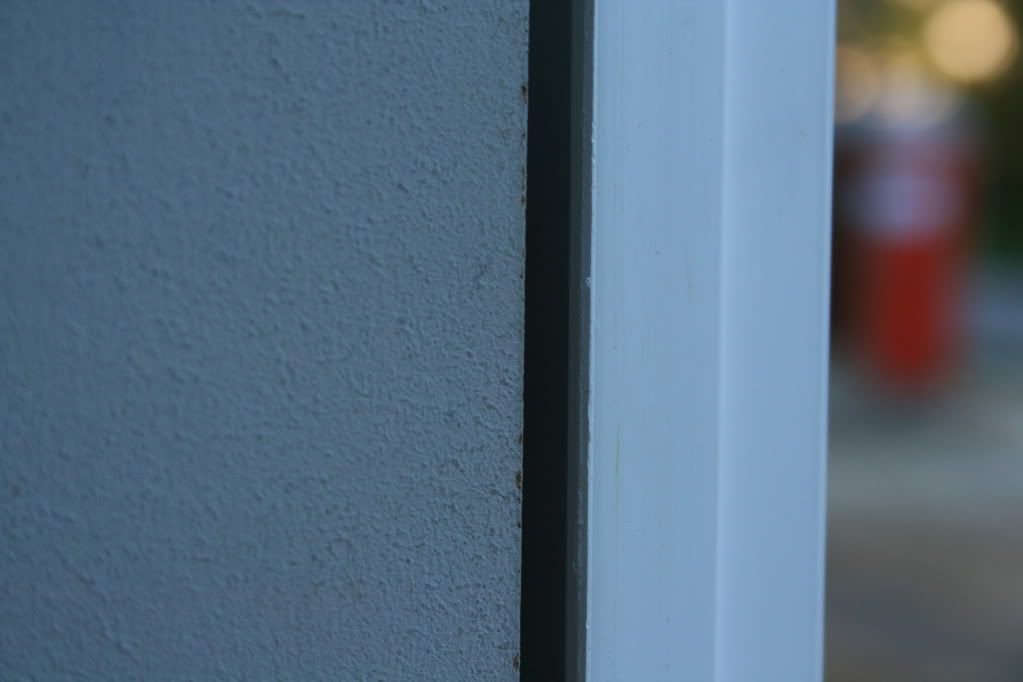

This show to the miratec pulled back about an 1/8 inch from the window.

    Bookmark   October 3, 2011 at 11:54AM
