Pictures of installed Bosch 500 dw

auntie_ellen bostonJuly 16, 2012

I had 2 matching 10 yo KA dws that had problems. I replaced them with 2 Bosch 500 series today. The kickplates on the bottom do not look finished. Are there any pics that I could see of any installed? Online the image looks different than what I have. I think I may be missing a piece.

Thanks for any help!

I'm also not sure if they are installed too far forward as the toe kick doesn't line up with the cabinet toe kick but juts out.

Do they look funny to anyone? Thank you!

Thank you for reporting this comment. Undo
lwerner

I think it's installed too far forward, probably by 1" to 1.5". In the 1st picture, try making the right-front corner of the dishwasher be the same depth as the back edge of that angled piece at the left side of the sink base. (The piece with the vertical grooves on it.)

Doing that will recess the top of the dishwasher under the counter-top a bit, maybe 1". That's normal for these flat-front dishwashers with bar handles. The other style dishwashers where the front is thicker on top to hold the handle, control panel, etc. don't recess as far under the counter.

Laura

    Bookmark   July 17, 2012 at 2:55AM
Thank you for reporting this comment. Undo
auntie_ellen boston

Thank you. I think you're right. We may have the plumber come back or my husband may try to move it.

    Bookmark   July 17, 2012 at 9:27AM
Thank you for reporting this comment. Undo
jwvideo

On the bottom, you might be missing a cover. It is hard for me to tell from the photos. I do not know which model you have but I have linked to a manual below for one of the 500 series DWs. Page 15 of the manual (which is actually the 17 page of the pdf) shows this two piece set-up.

For moving the DW back, you need to open the door and look up at the bottom front edge of the countertop. There should be a coupple of thin metal brackets that are screwed to the bottom of the counter. There should be one near each front corner or maybe they will be in the corners and mount to the side cabinets. (You can see examples in the like below.) Those screws need to be backed out for the DW to be moved in or out. Again, though, read the installation instructions that cover your specific model.

Here is a link that might be useful: Installation instructions

    Bookmark   July 17, 2012 at 2:13PM
Thank you for reporting this comment. Undo
weedmeister

Because this is a granite counter, the screws holding the DW may be in the sides at the front and attach to the cabinets.

Take another picture of the toe kick, but shine a flashlight on it. It's too dark in the pictures.

    Bookmark   July 17, 2012 at 4:26PM
Thank you for reporting this comment. Undo
bonesoda

JWVideo is right the kickplate is missing.. its flat black with no visible screws or anything.

Also the dw isn't installed correctly mine is painstakingly alligned to the cabinetry and granite and its flushed.

    Bookmark   July 17, 2012 at 5:33PM
Thank you for reporting this comment. Undo
badgergal

Auntie Ellen, I previously posted a picture for you on the kitchen forum but I saw you posted here too. The picture that shows your DW in relation to the cabinet definitely looks like it is not installed in far enough.

I don't think your toe panel is missing a part though if it is a metal one. Contrary to what jsmith says the toe panel on my 500 series DW has 2 screws. They are black so you really can't see them easily. The install instructions show the metal piece on page 23-24.

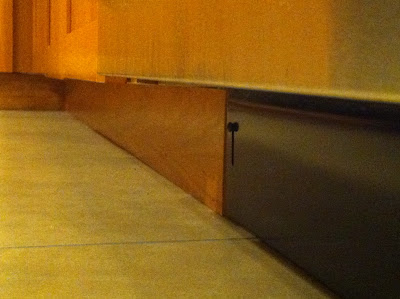

Here is a close up of one side of my toe panel. The screw is in that slot on the left.

And as you can see in this second (blurry) picture the toe kick does not show and the dishwasher is flush with the cabinets

Hope you get your dishwasher install corrected.

    Bookmark   July 17, 2012 at 8:58PM
Thank you for reporting this comment. Undo
bonesoda

badgergal is correct i just checked mine (i have a 800 series) and there are screws on the kickplate but it is not visible while standing you have to get right on the floor to see it.

    Bookmark   July 18, 2012 at 12:40AM
Thank you for reporting this comment. Undo
jscout

I also have a 500 and it's like badgergal has in the photo. My plumber installed the DW so that the black plate is flush with the cabinet toe kick. I have the SS door, so it sticks out a little farther than the cabinet doors and drawers, but not as far as yours. As a sanity check, I asked my cabinetmaker if the DW was installed correctly and he confirmed that it was supposed to be installed that way. He added that it was one of the few that he's seen installed correctly, because most people have the DW pushed in too far. He also said that if the DW is pushed too far in, the gasket that goes around the outside of the DW might not fit correctly. Since I have soapstone counters, the DW is strapped to the cabinets on either side rather than to the counter. I think if I had a paneled front on the DW, I would probably have more of an issue with the door extending beyond the plane of the cabinets.

    Bookmark   July 18, 2012 at 10:30AM
Thank you for reporting this comment. Undo
auntie_ellen boston

Thank you jscout. Any chance you could you post a picture? I took some more pics but wasn't able to upload to photobucket this am. I will try again.
I'm not clear whether you think its too far out or in? And does your toe kick have visble screws and ability to see "behind" those holes and see insulation?

I'd love to see a pic of a stainless front 500 to compare!

    Bookmark   July 18, 2012 at 5:08PM
Thank you for reporting this comment. Undo
jscout

My installation:

Flush with toekick:

Side view showing door protrusion:

Showing the DW door only 1/2 inch past drawer front:

    Bookmark   July 18, 2012 at 10:12PM
Thank you for reporting this comment. Undo
bonesoda

I got my bosch installed flushed with the cabinets, i was very adamant that it be installed flushed as it was at the end of an island, also i got the kickplate for the cabinetry to do a return right at the dw, it has a built in look except with SS door & handle.

    Bookmark   July 19, 2012 at 12:23AM
Thank you for reporting this comment. Undo
auntie_ellen boston

Photobucket worked today. I have 2 dw (double the trouble) but will show pics of only one. They are both installed the same way. ALMOST in line with the plane of the drawer/door fronts(+0.5 inch) but toe kick way out of line with cabinet toe kick (+2 inches!). I am concerned that if the are now recessed the 2 inches they will look stranger and have cabinet sides exposed. Hopefully pics will demonstrate. Thank you so much for your help!
Front extending cabinet door


Toe kick extension

And hopefully lighted closeup of kick plate area

How much further could it be recessed? Should it line up with cabinet frame front or doors/drawer fronts (full overlay)?

    Bookmark   July 19, 2012 at 9:46AM
Thank you for reporting this comment. Undo
jscout

Ok I think I know what the installer did. They installed the plastic toe panel that extends the bottom of the DW out.

Your gasket looks like mine, so it looks like it was a "proper" installation:

If you look step 24 of the installation guide (very bottom right corner of the document), you will find the instructions for this part. I don't have this part installed and from the looks of it, neither does badgergirl.

Here is a link that might be useful: Bosch 500 Installation Guide

    Bookmark   July 19, 2012 at 10:31AM
Thank you for reporting this comment. Undo
jscout

On further inspection of the installation guide, your DW is one of the "select models" indicated in option 1 of this step. Mine is one of the models "with the metal toe panel only" indicated in option 2.

    Bookmark   July 19, 2012 at 10:39AM
Thank you for reporting this comment. Undo
badgergal

Even if your dishwasher was pushed in a little bit more that toe kick would be still be sticking out. It seems like the toe kick is installed wrong. The link provided above shows the toe panel installation (illustration #24). Maybe you should take the toe kick apart and try reinstalling that.

    Bookmark   July 19, 2012 at 10:45AM
Thank you for reporting this comment. Undo
weedmeister

There is a possibility that the depth of the toe-kick of the washer is less than the depth of the toe-kick of the cabinetry.

I still think I would move the unit back another 1/2 inch or so.

    Bookmark   July 19, 2012 at 2:42PM
Thank you for reporting this comment. Undo
bonesoda

Mine isn't a 500 but here are some pics to see how i got it installed and the kickplate.






    Bookmark   July 20, 2012 at 12:41AM
Thank you for reporting this comment. Undo
bojangling

I just installed my Bosch 500 Series and the instructions said "Units are typically positioned so that the door is flush with cabinet door and drawer fronts."

Installing the door flush with my cabinet fronts meant my DW toekick protruded 1/2" out from my cabinet toekick.

Those instructions can be seen below on Page 15 Step 12.

Here is a link that might be useful: Bosch SHX55R55UC Manual

    Bookmark   July 20, 2012 at 10:20AM
Thank you for reporting this comment. Undo
jscout

Thanks for pointing that out, bojangling. I should have read through all the instructions. So much for trusting everything a trademan says and does (I thought mine were pretty good ones too). :) I think I might have to revisit my DW installation sometime in the near future. Thanks again.

    Bookmark   July 20, 2012 at 10:45AM
Thank you for reporting this comment. Undo
bojangling

No problem. I have gleaned so many good tips/advice from this site it's great to give back!

    Bookmark   July 20, 2012 at 2:49PM
