13X 6.6 ft bath. Need ideas pics included.

what_nowMarch 5, 2014

Potential new house (offer made).

The bath has a weird layout. Hate how the toilet has no
Privacy and is fairly prominent placement.

I rarely take a bath and would prefer a big tiled shower.
Also would like a linen cabinet.

I found a pic of a house with same plan to
Show the placement visually. I may be able to bump out in the bedroom for a toilet placement. Br is 13x15.

Any ideas?

Here is a link that might be useful: Pics

Thank you for reporting this comment. Undo
what_now

I also added a design I came up with. Hate to lose the tub but maybe thats best in order to have big shower, linen and somewhat hidden toilet.

    Bookmark   March 5, 2014 at 2:34PM
Thank you for reporting this comment. Undo
likewhatyoudo

I hope you don't mind i put the images on. Makes it easier for member's to help. I would love to know what software you used to draw the design.

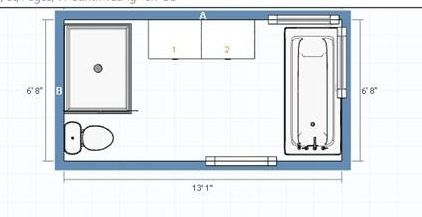

New house current bathroom

Potential design
Not sure if enough room for toilet there. Area by window is vanity seating (wouldnt let me put counter accross) Shower could be bigger - didnt have option in program.

    Bookmark   March 5, 2014 at 4:46PM
Thank you for reporting this comment. Undo
likewhatyoudo

As far as my input on the potential design I don't care for the corner shower like you have it drawn in. I would hesitate to remove the tub, for resale it could be a deal breaker unless you did the shower so remarkable to outweigh the loss of a tub. I don't use my tub often but I do enjoy a nice long bath on occasion.

Contemporary Bathroom by Philadelphia Architects & Designers k YODER design, LLC

    Bookmark   March 5, 2014 at 4:58PM
Thank you for reporting this comment. Undo
what_now

I wouldnt do a corner. I just didnt have any showers in the program that size. It would be a normal rectangular shower. I have checked with a local realtor. Most new houses are being built with a large master shower and no tub.
The guest bath includes the tub. So I think for resale I am ok.
The shower you posted above is what I would want. .

    Bookmark   March 5, 2014 at 5:18PM
Thank you for reporting this comment. Undo
what_now

Oh by the way, I used Lowes free room designer. I believes its based on the program ikea uses for their kitchen designer. It has limitations, but it was free.

    Bookmark   March 5, 2014 at 5:20PM
Thank you for reporting this comment. Undo
canuckplayer

The toilet should have 33-35" for install and min. 20" (pref. more) in front, so let's say 34+20=54". You posted that wall is 66" (6'6"), leaving only 12" to the wall. There definitely is no room for a vanity there.

What kind of development are you in? Are most of the houses family homes or empty nesters? If empty nesters, removing the tub should be no problem b/c it's harder for us seniors to climb in and out. But, I am a little skeptical if your neighborhood is mostly families. Parents usually want to bathe in their own bath, for their own quiet time, or so as not to disturb sleeping children in bedrooms nearby.

This post was edited by canuckplayer on Wed, Mar 5, 14 at 18:00

    Bookmark   March 5, 2014 at 5:55PM
Thank you for reporting this comment. Undo
what_now

The short wall is exactly 80 inches. Sorry if I missed diving into feet. I believe a min of 76 would be required right?
21 for the vanity, 20 for space, 35 for toilet. The toilet I want to use is 28.75 depth. Am I miscalculating?

    Bookmark   March 5, 2014 at 6:06PM
Thank you for reporting this comment. Undo
what_now

The neighborhood is an older established area. It skud to single people and those older with grown kids. I will double check with a few other realtors to make sure.

    Bookmark   March 5, 2014 at 6:09PM
Thank you for reporting this comment. Undo
canuckplayer

My apologies. I read it as 6'6", and calculated as 66"..duh.
I agree you could put in a make-up vanity here, but sitting at it may be tight though. Could you move the make-up vanity to the shower end? This would put a sink closer to the toilet, for hand washing, freeing wall space for hanging towels and give room behind the vanity seating.

With the toilet gone at the end of the shower, you could put a storage cabinet in it's place.

Just be aware that moving the toilet is very involved and expensive. A new waste line has to be run down and a new vent line has to be run up through the roof. Then both of the old ones must be removed and holes repaired. Water shouldn't be a problem, since it's on the same wall as the removed tub. It's just a matter of rerouting it in the wall to the toilet location.

This post was edited by canuckplayer on Wed, Mar 5, 14 at 23:37

    Bookmark   March 5, 2014 at 11:23PM
Thank you for reporting this comment. Undo
canuckplayer

By the way, congrats on your purchase!!
It's exciting moving into a new home, whether it's your first home or tenth.

    Bookmark   March 5, 2014 at 11:40PM
Thank you for reporting this comment. Undo
what_now

I could do that but wasnt sure if it would be weird to have the sink in front of the window. With the vanity seating usually women use a makeup mirror on the counter. What do you think?

    Bookmark   March 5, 2014 at 11:46PM
